結構Configuration:直列In-Line |
轉速 Speed:900/1000r/min |
缸徑Bore:210mm |
活塞速度 Pision speed:9.3/10.3m/s |
沖程Stroke:310mm |
平均有效壓力 Mean effective pressure:2.36/2.24MPa |
最大燃燒壓力Max.combustion pressure:20.OMPa |
電壓 Voltage:450V/400V |
燃油Fuel quality:燃重油時最大粘度為700cSt/50°C |
頻率 Frequency:60/50 Hz |
Engine type |
Output |
speed r/min |
外形尺寸mm overall dimensions |
凈重噸 |
|||
|
|
|
A |
B |
C |
D |
|
6L21/31 |
1290kW(1755bhp) |
1000 |
4224 |
2821 |
3284 |
2220 |
13.9 |
7L21/31 |
1505kW(2047bhp) |
1000 |
4579 |
3176 |
3639 |
2220 |
15.2 |
8L21/31 |
1720kW(2340bhp) |
1000 |
4934 |
3531 |
3994 |
2220 |
16.6 |
9L21/31 |
1935kW(2630bhp) |
1000 |
5289 |
3886 |
4349 |
2220 |
18.2 |

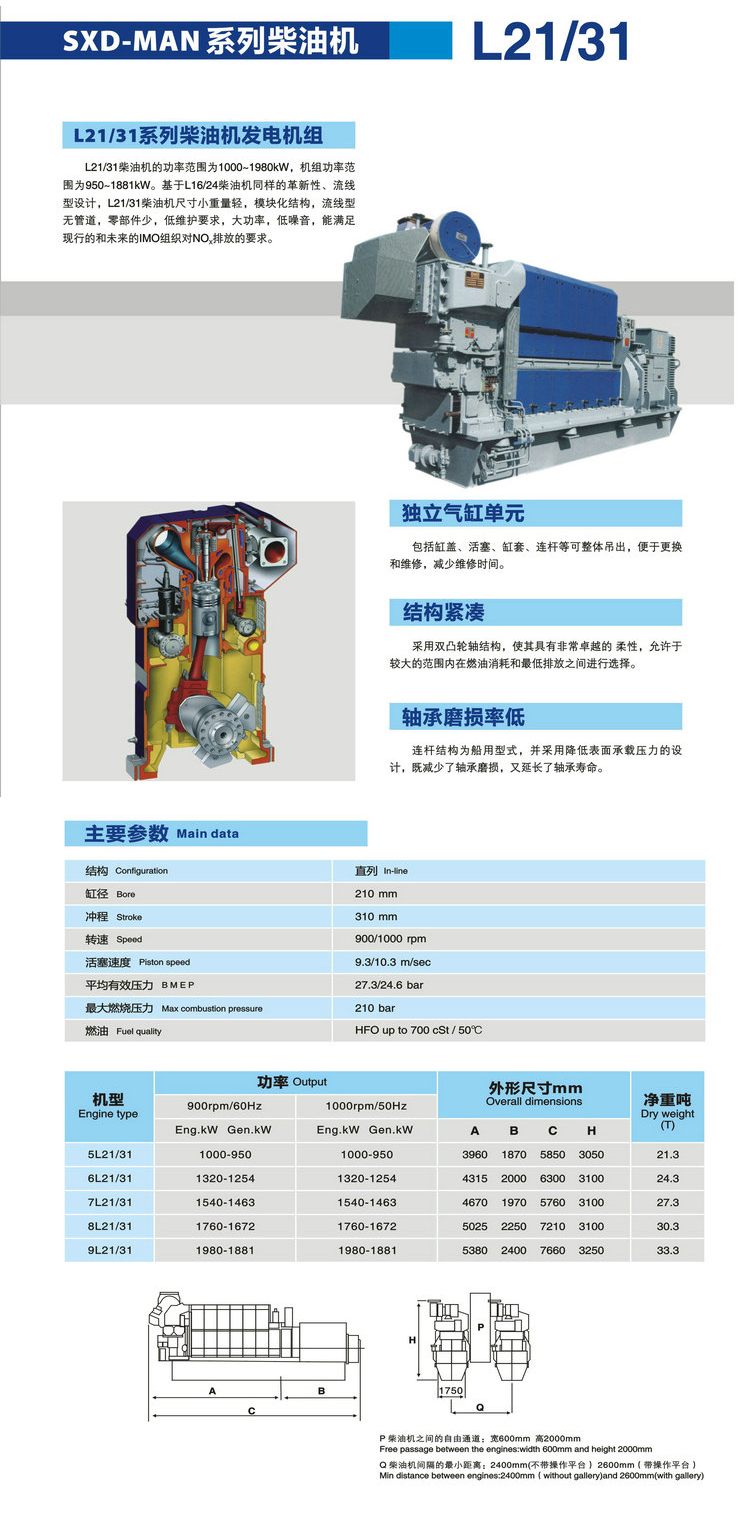

陜柴21/31的簡介
